A hollow structural section column connects to a supporting beam sized per plan. The connection incorporates steel plates welded to the column base, including a 1-inch thick plate for HSS12x12 and HSS12x10 members, a 1/2-inch thick plate for HSS8x4 and HSS6x6 members, and a 3/4-inch thick plate for HSS12x8 members. Four 7/8-inch diameter ASTM A325 pretensioned bolts secure the assembly. Column orientation varies per plan. Stiffener plates of 3/8-inch thickness are welded with typical fillet welds as indicated.

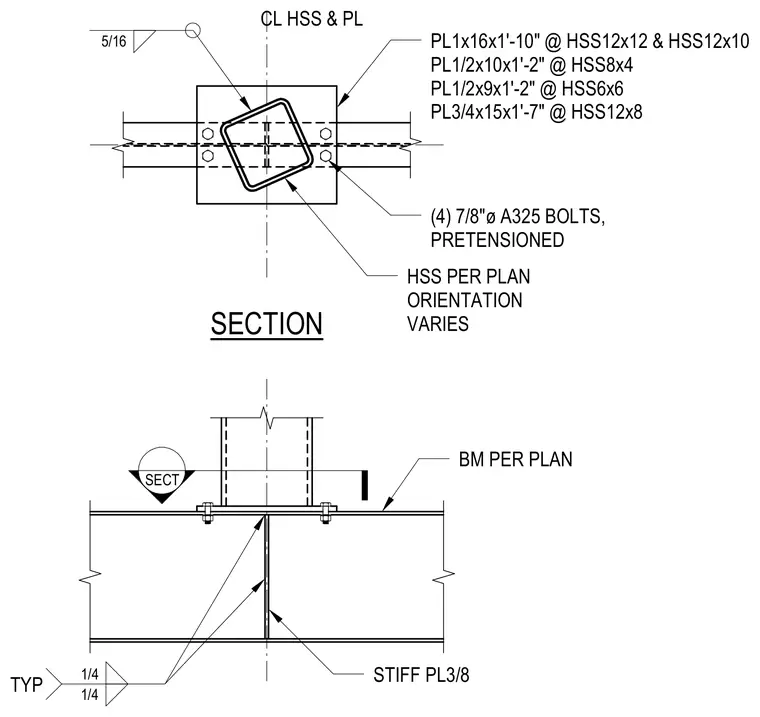

SECT CL HSS & PL PL1x16x1'-10" @ HSS12x12 & HSS12x10 PL1/2x10x1'-2" @ HSS8x4 PL1/2x9x1'-2" @ HSS6x6 PL3/4x15x1'-7" @ HSS12x8 (4) 7/8"ø A325 BOLTS, PRETENSIONED HSS PER PLAN ORIENTATION VARIES BM PER PLAN STIFF PL3/8 TYP 1/4 1/4 SECTION 5/16
