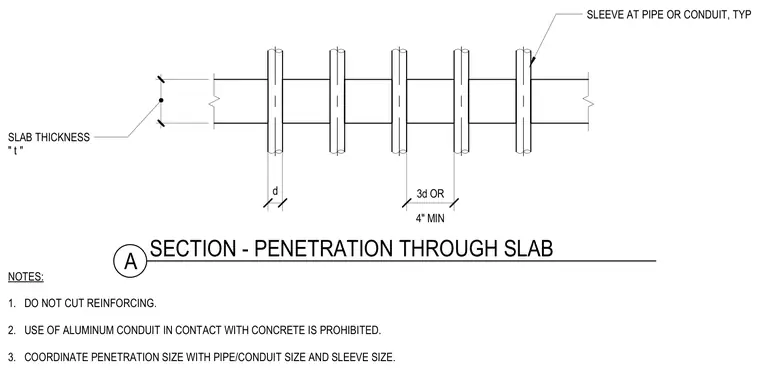

Sleeves are installed at pipe or conduit penetrations through a concrete slab of thickness t. Minimum spacing between penetrations requires three times the diameter d or four inches minimum, whichever is greater. Reinforcing steel must remain uncut during penetration installation. Aluminum conduit in direct contact with concrete is strictly prohibited. Penetration sizes must be fully coordinated with pipe, conduit, and sleeve dimensions.
NOTES: 1. DO NOT CUT REINFORCING. 2. USE OF ALUMINUM CONDUIT IN CONTACT WITH CONCRETE IS PROHIBITED. 3. COORDINATE PENETRATION SIZE WITH PIPE/CONDUIT SIZE AND SLEEVE SIZE. d 4" MIN 3d OR - SLAB THICKNESS " t " SLEEVE AT PIPE OR CONDUIT, TYP A SECTION - PENETRATION THROUGH SLAB
