Structural · S-DKEAG

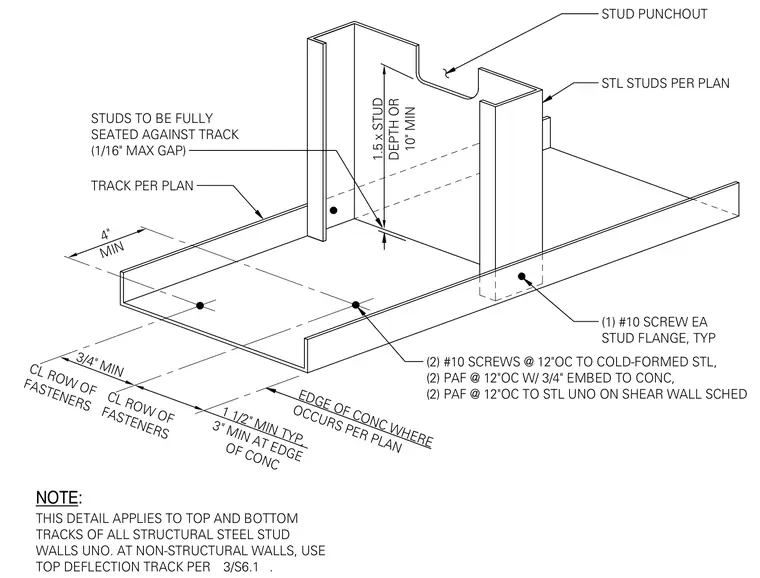

Typical Top and Bottom Track Detail

Materials

Concrete Steel Cold-formed Steel Timber / Wood

Elements

Walls Shear Walls Anchors / Embeds

Connections

Deck Attachment Embed Plate

About this detail

Cold-formed steel studs are seated fully against the track with a maximum allowable gap of one-sixteenth of an inch. Studs connect to the track using one number ten screw at each stud flange, supplemented by two number ten screws at twelve inches on center to cold-formed steel, powder-actuated fasteners at twelve inches on center with three-quarter-inch embedment to concrete, or powder-actuated fasteners at twelve inches on center to steel unless noted otherwise on the shear wall schedule. Fasteners maintain minimum edge distances of three-quarters of an inch to centerlines and one and one-half inches typical to three inches at the edge of concrete.
