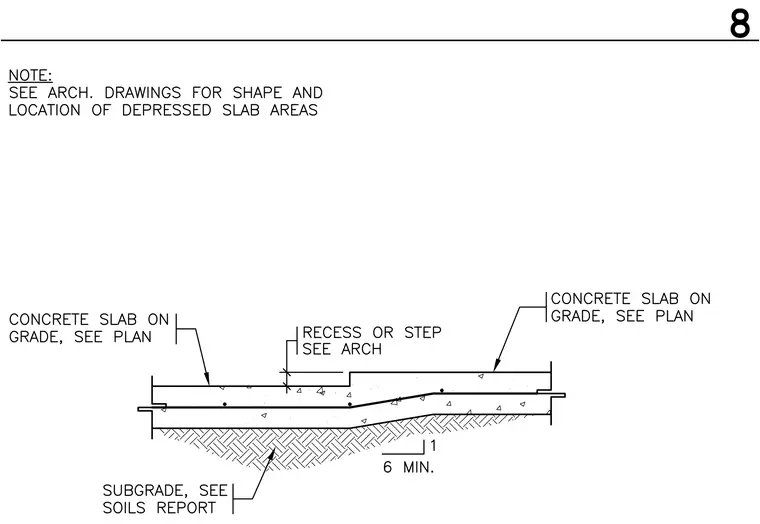

A concrete slab-on-grade transitions via a recess or step with a slope ratio of 1 vertical to 6 minimum horizontal. The subgrade is prepared per the soils report. Concrete slab thickness and reinforcement are sized per plan, with depressed slab shape and location coordinated with architectural drawings.
