A gas cylinder manifold stand is mounted against a concrete masonry unit wall fully grouted for a minimum of eight inches beyond the cylinder supports in all directions. The assembly utilizes vertical Unistrut P1000 stainless steel members with end caps secured by adjustable hinge connections and P2544 stainless steel components, with all Unistrut hardware specified as stainless steel. Ten-gauge straight link coil chains secure each side of the cylinders, equipped with spring snap harnesses that snap onto the free ends of the chain. Typical concrete masonry unit anchors are spaced at twelve inches on center.

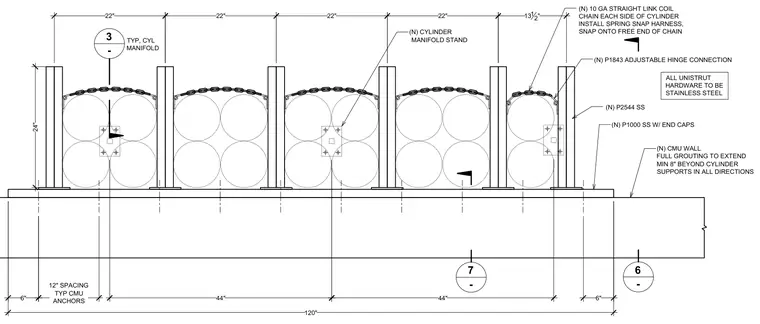

(N) P1000 SS W/ END CAPS (N) P1843 ADJUSTABLE HINGE CONNECTION (N) P2544 SS (N) CYLINDER MANIFOLD STAND 24" 22" 22" 22" 22" 120" (N) CMU WALL FULL GROUTING TO EXTEND MIN 8" BEYOND CYLINDER SUPPORTS IN ALL DIRECTIONS (N) 10 GA STRAIGHT LINK COIL CHAIN EACH SIDE OF CYLINDER INSTALL SPRING SNAP HARNESS, SNAP ONTO FREE END OF CHAIN 44" 44" 6" 12" SPACING TYP CMU ANCHORS 6" ALL UNISTRUT HARDWARE TO BE STAINLESS STEEL 1312" 7 - 6 - 3 - TYP, CYL MANIFOLD
