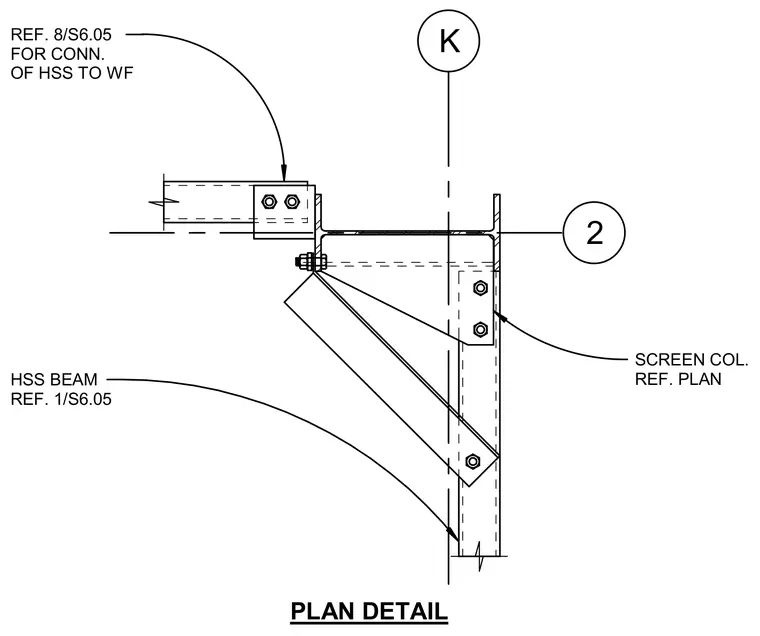

A hollow structural section beam frames into a wide flange screen column using a framed connection. Reference notes direct the user to sheet S6.05 for further connection details of the structural members. Additional framing members are tied into the column flange with bolted gusset and bracket plates per the structural plan.
K 2 REF. 8/S6.05 FOR CONN. OF HSS TO WF SCREEN COL. REF. PLAN HSS BEAM REF. 1/S6.05 PLAN DETAIL
