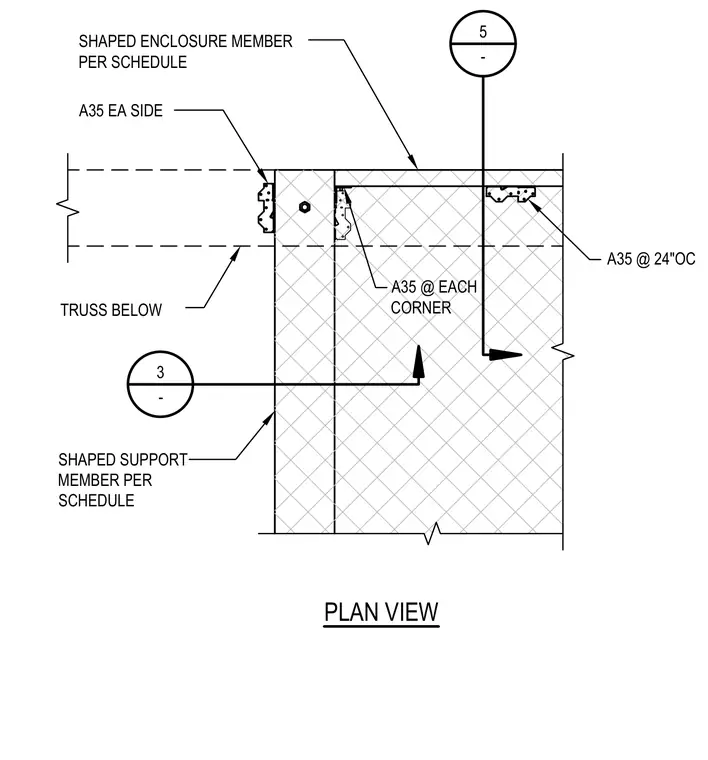

A shaped enclosure member meets a shaped support member sized per schedule at a structural corner. Framing clips type A35 are fastened to each side and each corner of the members. Additional A35 clips are spaced at twenty-four inches on center relative to the truss located below.
SHAPED ENCLOSURE MEMBER PER SCHEDULE SHAPED SUPPORT MEMBER PER SCHEDULE A35 EA SIDE A35 @ EACH CORNER TRUSS BELOW A35 @ 24"OC 5 - PLAN VIEW 3 -
