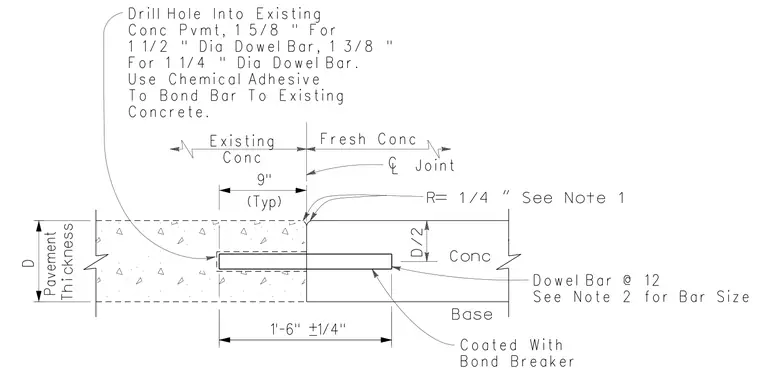

This transverse construction joint connects existing concrete pavement to fresh concrete using a dowel bar embedded across the joint centerline at half the pavement thickness. Holes are drilled into the existing concrete pavement at one and five-eighth inches diameter for a one and one-half inch diameter dowel bar, or one and three-eighth inches for a one and one-quarter inch diameter dowel bar, and bonded using chemical adhesive. The dowel bar is coated with a bond breaker on the fresh concrete side and spaced at twelve inches on center. The joint includes a one-quarter inch radius edge on the fresh concrete side.
Conc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D / 2 Concrete. To Bond Bar To Existing Use Chemical Adhesive For 1 1/4 " Dia Dowel Bar. 1 1/2 " Dia Dowel Bar, 1 3/8 " Conc Pvmt, 1 5/8 " For Drill Hole Into Existing T h i c kn e ss Base Fresh Conc Conc Existing Bond Breaker Coated With P a v e m e n t D (Typ) 9" R= 1/4 " See Note 1 See Note 2 for Bar Size Dowel Bar @ 12
