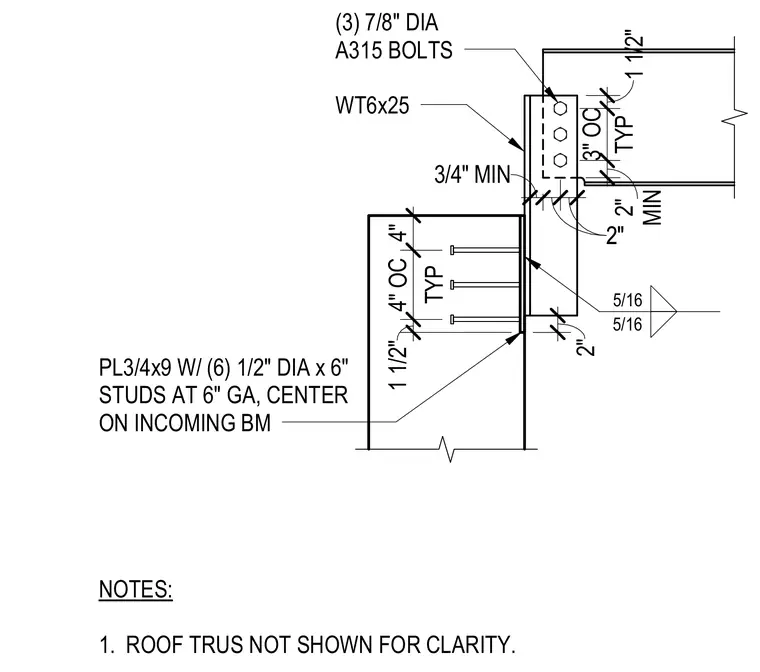

A WT6x25 structural tee connects to an embedded 3/4-inch by 9-inch steel plate featuring six 1/2-inch diameter by 6-inch studs at 6-inch gauge, centered on the incoming beam. Three 7/8-inch diameter A315 bolts secure the framing connection with specified edge distances and spacing. Fillet welds of 5/16-inch size secure the structural tee assembly to the embedded plate. The roof truss is omitted from the view for clarity.
NOTES: 1. ROOF TRUS NOT SHOWN FOR CLARITY. 1 1/2" TYP 3" OC MIN 2" 3/4" MIN 2"2" 1 1/2" TYP 4" OC 4" (3) 7/8" DIA A315 BOLTS WT6x25 2" PL3/4x9 W/ (6) 1/2" DIA x 6" STUDS AT 6" GA, CENTER ON INCOMING BM 5/16 5/16
