Typical Concrete Tilt-Up Panel to Panel Connection Detail

Materials

Concrete Steel

Elements

Roofs Decks Arches Anchors / Embeds Connections / Plates

Connections

Welded Connection Deck Attachment Embed Plate

About this detail

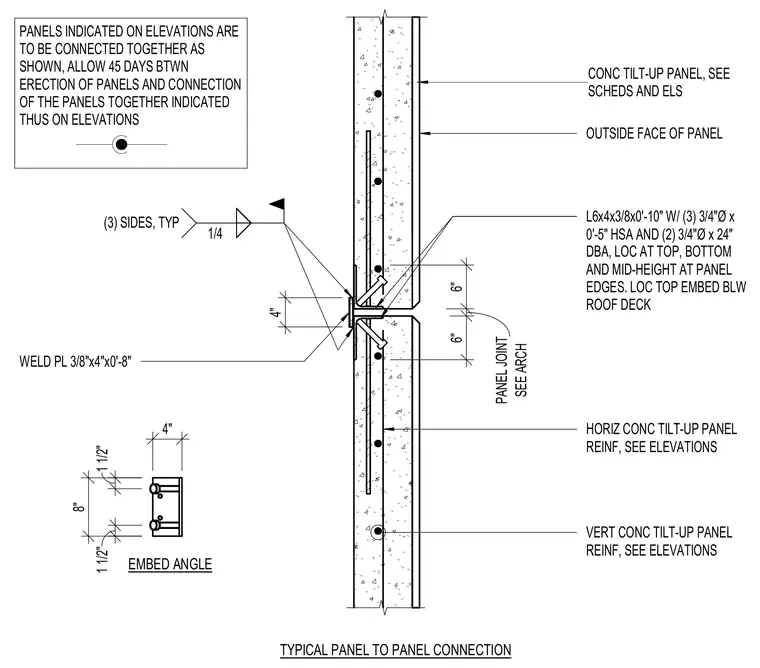

Adjacent concrete tilt-up wall panels are joined together using an L6x4x3/8 by 0'-10" embed angle secured with three 3/4-inch diameter by 0'-5" head stud anchors and two 3/4-inch diameter by 24-inch deformed bar anchors. A 3/8-inch by 4-inch by 0'-8" weld plate ties the connection across the panel joint with a quarter-inch fillet weld on three sides. The embed angles are located at the top, bottom, and mid-height of the panel edges, with the top embed positioned directly below the roof deck. A mandatory forty-five day waiting period is required between the erection of the panels and the final welding of the connection together.
