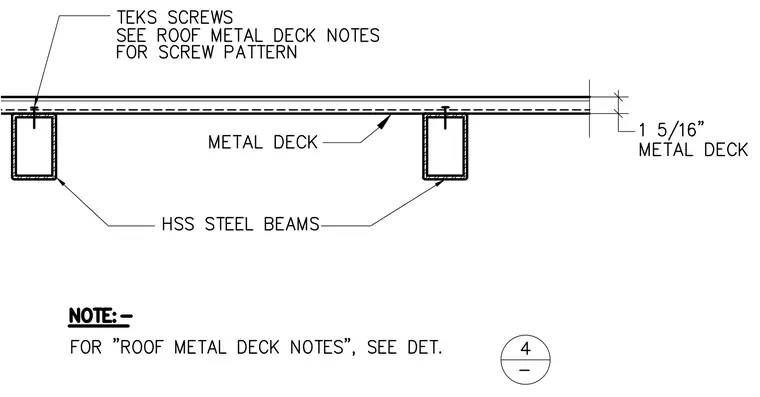

A one and five-sixteenths-inch metal deck bears continuously across hollow structural section steel beams. Self-drilling Teks screws secure the metal deck to the supporting steel framing members with spacing configured per roof metal deck notes. Reference is made to detail four for additional installation requirements.
