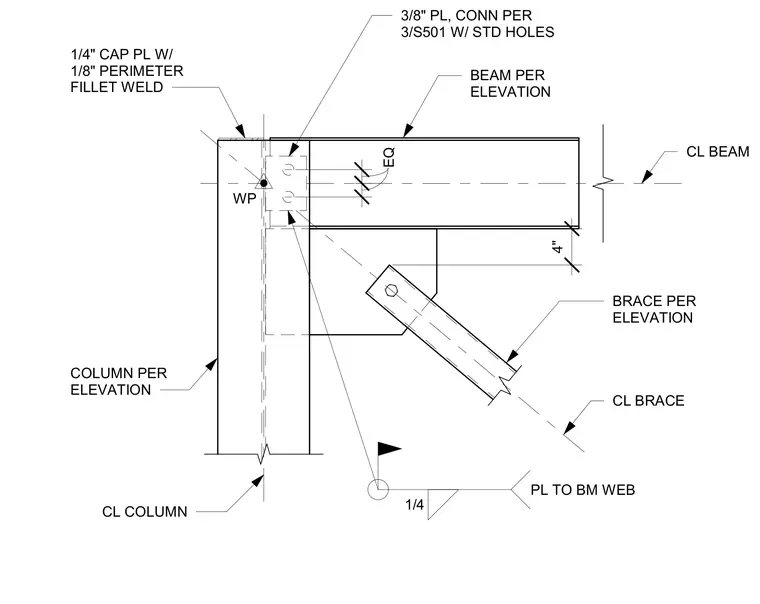

A structural steel braced frame connection details the intersection of a column, beam, and diagonal brace with a working point situated at their centerline intersections. A one-quarter inch thick cap plate with a one-eighth inch perimeter fillet weld tops the column. A three-eighth inch connection plate with standard holes fastens to the beam web per structural specifications. A gusset plate connects the diagonal brace member to the beam and column assembly with welded attachments.
BEAM PER ELEVATION COLUMN PER ELEVATION CL BRACE BRACE PER ELEVATION 4" WP CL BEAM CL COLUMN 1/4" CAP PL W/ 1/8" PERIMETER FILLET WELD 3/8" PL, CONN PER 3/S501 W/ STD HOLES 1/4 PL TO BM WEB EQ EQ
