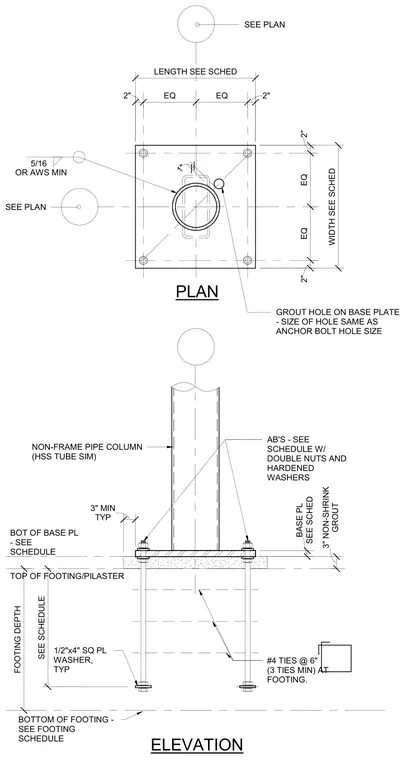

A non-frame pipe column or hollow structural section tube mounts to a steel base plate anchored into a concrete footing or pilaster. The base plate is secured with anchor bolts featuring double nuts, hardened washers, and a half-inch by four-inch square plate washer at the embedment. A central or offset grout hole matches the anchor bolt hole size in diameter, and a three-inch minimum non-shrink grout layer sits beneath the base plate. The concrete footing includes number four ties spaced at six inches on center with a minimum of three ties.
PLAN NON-FRAME PIPE COLUMN (HSS TUBE SIM) OR AWS MIN GROUT HOLE ON BASE PLATE - SIZE OF HOLE SAME AS ANCHOR BOLT HOLE SIZE 5/16 BOT OF BASE PL - SEE SCHEDULE TOP OF FOOTING/PILASTER AB'S - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS ELEVATION BOTTOM OF FOOTING - SEE FOOTING SCHEDULE 1/2"x4" SQ PL WASHER, TYP #4 TIES @ 6" (3 TIES MIN) AT FOOTING. TYP 3" MIN GROUT 3" NON-SHRINK SEE SCHED BASE PL FOOTING DEPTH 2" EQ EQ 2" LENGTH SEE SCHED 2" EQ EQ 2" WIDTH SEE SCHED 1" SEE SCHEDULE SEE PLAN SEE PLAN
