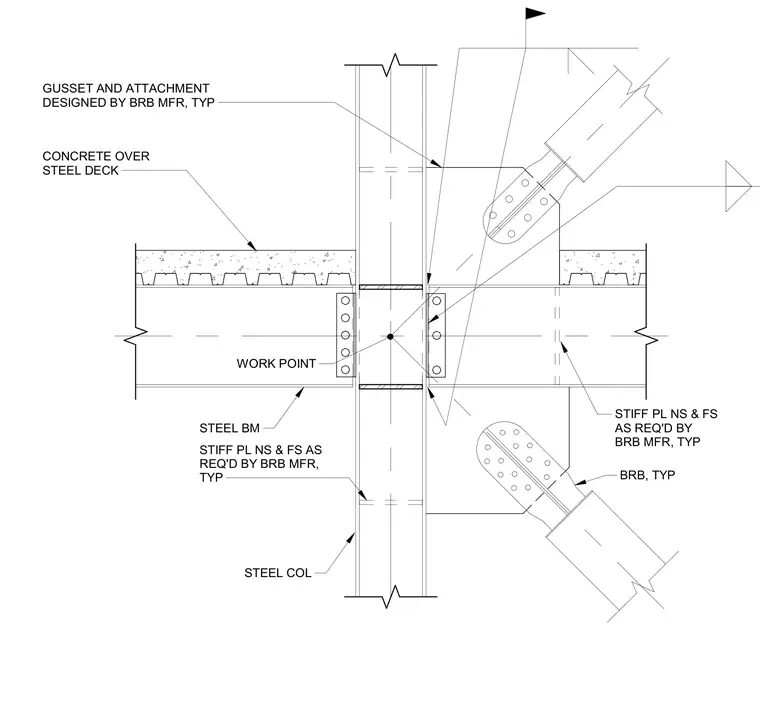

A buckling-restrained brace connects to a steel column and steel beam framing junction beneath a concrete over steel deck floor assembly. Gusset plates and attachments are designed by the buckling-restrained brace manufacturer with typical near side and far side stiffener plates provided on the structural members as required. The brace features a bolted lug connection centered on the work point at the structural intersection.
WORK POINT GUSSET AND ATTACHMENT DESIGNED BY BRB MFR, TYP CONCRETE OVER STEEL DECK STEEL BM STIFF PL NS & FS AS REQ'D BY BRB MFR, TYP STEEL COL BRB, TYP STIFF PL NS & FS AS REQ'D BY BRB MFR, TYP
