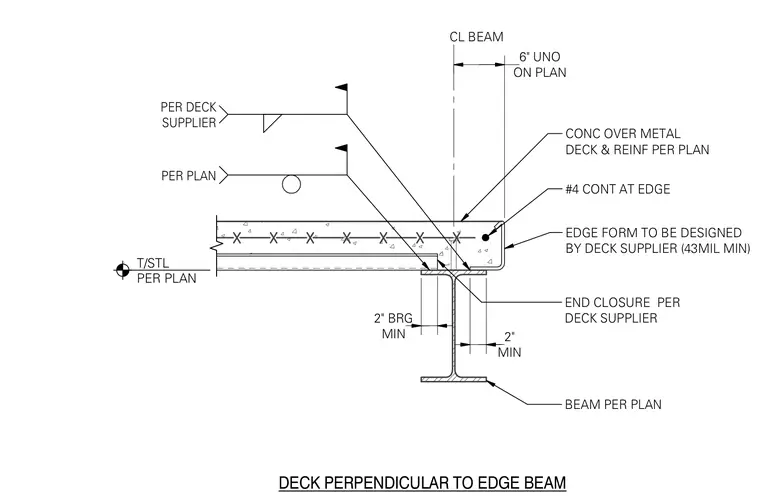

Concrete over metal deck bears perpendicularly on a structural steel beam sized per plan, requiring a minimum two-inch bearing width on the top flange. An end closure is provided per the deck supplier at the beam centerline, with a six-inch offset unless noted otherwise. A continuous number four reinforcing bar runs along the edge within the concrete slab. An edge form with a minimum thickness of forty-three mils is designed by the deck supplier.
BEAM PER PLAN PER DECK SUPPLIER DECK PERPENDICULAR TO EDGE BEAM CL BEAM ON PLAN 6" UNO END CLOSURE PER DECK SUPPLIER PER PLAN EDGE FORM TO BE DESIGNED BY DECK SUPPLIER (43MIL MIN) #4 CONT AT EDGE CONC OVER METAL DECK & REINF PER PLAN MIN 2" BRG MIN 2" T/STL PER PLAN
