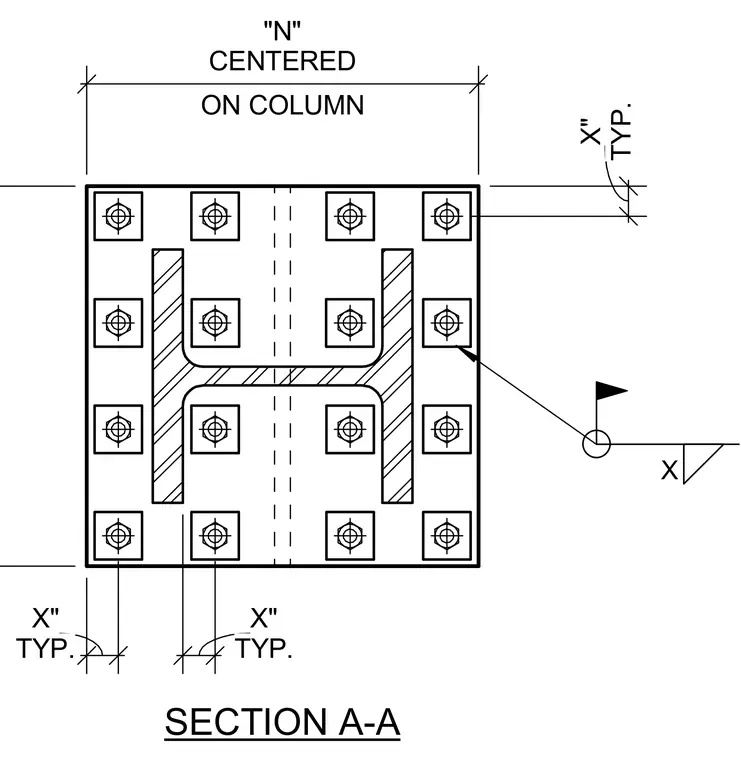

A wide-flange structural steel column centered on a base plate with a perimeter arrangement of anchor bolts. Anchor bolts feature square washers and are spaced at typical dimensions along the plate edges. A weld symbol and field weld indicator specify the connection between the column shape and the base plate. Overall plate dimensions and edge distances are dimensioned typically across the assembly.
SECTION A-A ON COLUMN "N" CENTERED TYP. X" TYP. X" X TYP. X"
