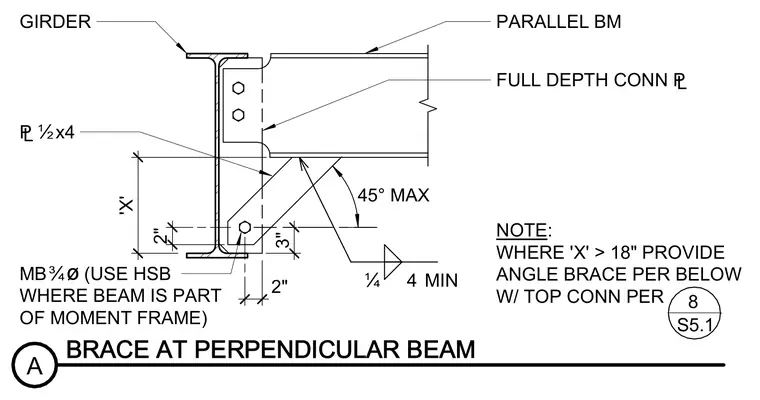

A parallel beam connects to the web of a perpendicular girder using a full-depth connection plate and a one-half by four-inch plate welded with a one-quarter inch fillet weld. A diagonal brace plate connects to the girder flange with a three-quarter inch diameter machine bolt, or a high-strength bolt if the beam is part of a moment frame. The detail includes dimensions for vertical spacing and restricts the brace angle to a maximum of forty-five degrees. When dimension X exceeds eighteen inches, an angle brace is required with a top connection detailed elsewhere on the drawings.
A BRACE AT PERPENDICULAR BEAM GIRDER MBÓø (USE HSB WHERE BEAM IS PART OF MOMENT FRAME) £Ïx4 FULL DEPTH CONN £ PARALLEL BM Ë 4 45° MAX MIN 3" 2" 2" 'X' NOTE: WHERE 'X' > 18" PROVIDE ANGLE BRACE PER BELOW W/ TOP CONN PER 8 S5.1 ___________
