An MC18x42.7 steel channel extension is attached to the stair stringer and frames into the landing assembly. Three 7/8-inch diameter bolts fasten an angle per plan to the landing support, with the horizontal leg coped at the weld connection. A 3/8-inch by 2-inch by 8-inch steel plate and stiffener plates per plan reinforce the connection, which is secured with 3/16-inch welds typically. All welds are ground smooth to achieve an architecturally pleasing finish, and the pan deck features an upturned edge at the landing.

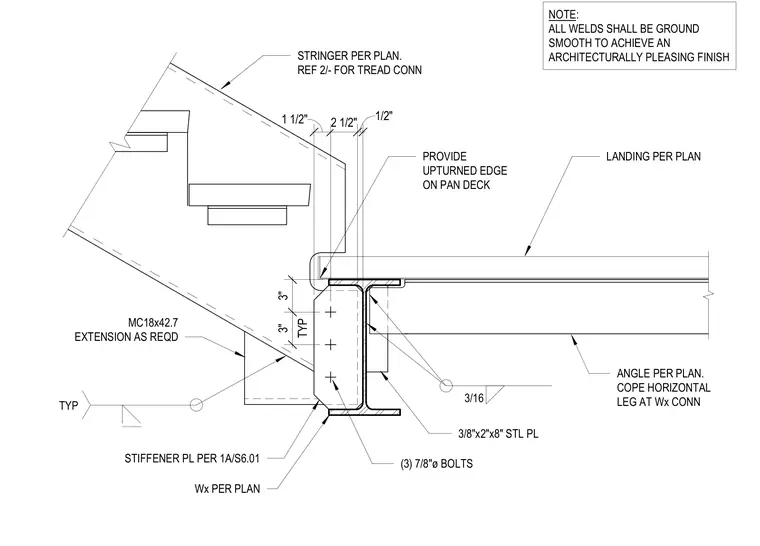

STRINGER PER PLAN. REF 2/- FOR TREAD CONN LANDING PER PLAN 3/16 Wx PER PLAN TYP 3" 3" 1 1/2" 2 1/2" 1/2" ANGLE PER PLAN. COPE HORIZONTAL LEG AT Wx CONN (3) 7/8"ø BOLTS STIFFENER PL PER 1A/S6.01 3/8"x2"x8" STL PL MC18x42.7 EXTENSION AS REQD TYP NOTE: ALL WELDS SHALL BE GROUND SMOOTH TO ACHIEVE AN ARCHITECTURALLY PLEASING FINISH PROVIDE UPTURNED EDGE ON PAN DECK
