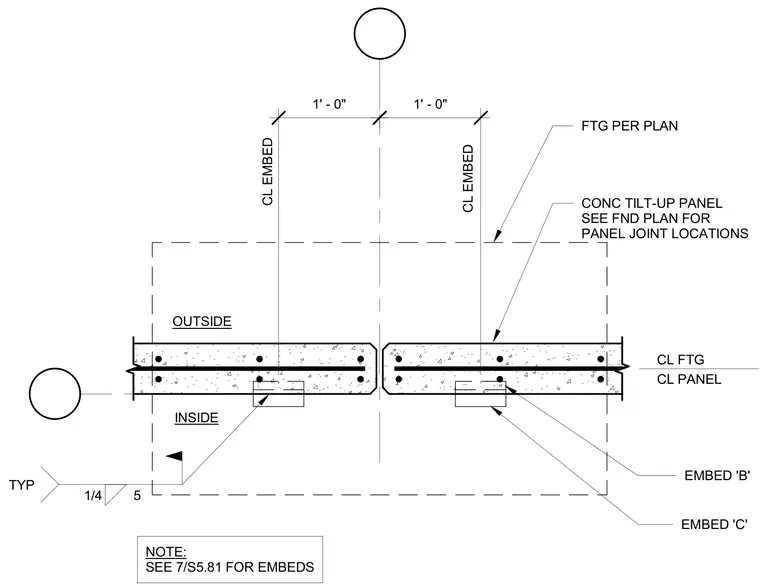

Adjacent concrete tilt-up panels align end-to-end over a foundation footing sized per plan. Embed plates labeled Embed B and Embed C cast into the interior face of each panel provide the connection points. A typical quarter-inch fillet weld secures the embedded assembly. Panel joint locations are coordinated per the foundation plan, and specific embed details are referenced on sheet S5.81.
1/4 5 TYP CL FTG CL PANEL OUTSIDE INSIDE CONC TILT-UP PANEL SEE FND PLAN FOR PANEL JOINT LOCATIONS EMBED 'B' EMBED 'C' CL EMBED CL EMBED 1' - 0" 1' - 0" FTG PER PLAN NOTE: SEE 7/S5.81 FOR EMBEDS
