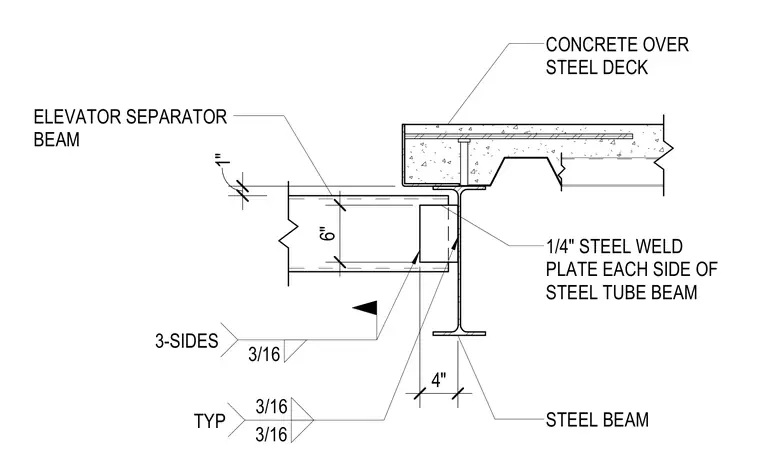

An elevator separator steel tube beam frames into a structural steel beam beneath a concrete slab poured over a steel deck. A one-quarter-inch steel weld plate is welded to each side of the steel tube beam. The connection is detailed with three-sixteenth-inch fillet welds applied on three sides typically. Clearances of one inch and four inches are maintained around the separator beam configuration.
STEEL BEAM CONCRETE OVER STEEL DECK ELEVATOR SEPARATOR BEAM 1/4" STEEL WELD PLATE EACH SIDE OF STEEL TUBE BEAM 3/16 3-SIDES 3/16 3/16 TYP 6" 4" 1"
