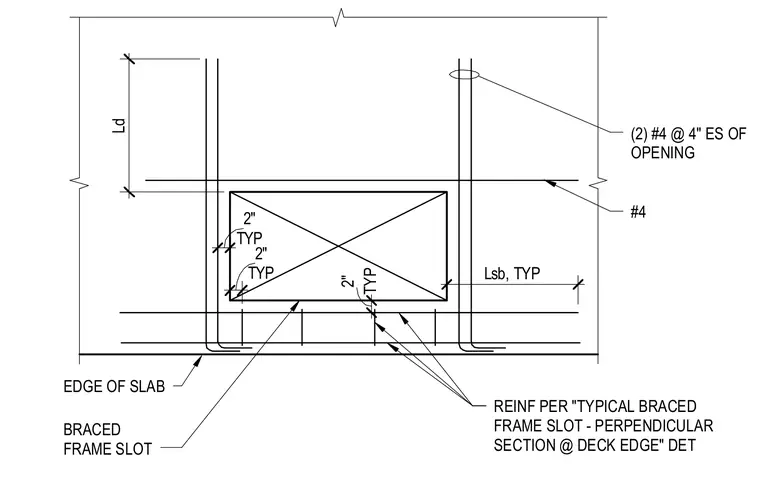

A two-inch braced frame slot is detailed at the edge of the concrete slab with framing reinforcement. Two number four bars spaced at four inches are placed at each side of the opening. Additional reinforcement is provided per the perpendicular section detail at the deck edge.
EDGE OF SLAB REINF PER "TYPICAL BRACED FRAME SLOT - PERPENDICULAR SECTION @ DECK EDGE" DET TYP 2" BRACED FRAME SLOT Ld Lsb, TYP #4 (2) #4 @ 4" ES OF OPENING TYP 2" TYP 2"
