Structural · S-DGW8F

Tilt-Up Concrete Wall and Steel Framing Connection Details

Materials

Concrete Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Columns Beams Walls Decks Arches Anchors / Embeds Connections / Plates

Connections

Embed Plate

About this detail

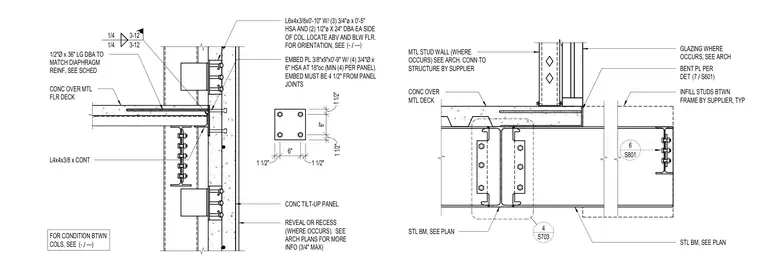

A concrete tilt-up wall panel connects to a structural steel floor system using an embed plate measuring three-eighths by nine inches by nine inches with four three-quarter-inch diameter by six-inch heavy stud anchors spaced at eighteen inches on center. The concrete floor slab is supported over a metal floor deck and tied back with a one-half-inch diameter by thirty-six-inch long dowel bar matching the diaphragm reinforcement. An L6x4x3/8 angle measuring ten inches long with three three-quarter-inch diameter by five-inch heavy stud anchors and two one-half-inch diameter by twenty-four-inch dowel bars is located above and below the floor level on each side of the column. A continuous L4x4x3/8 angle provides edge support at the reveal or recess where applicable. Steel framing beams are detailed with shear connections and infill studs as specified per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
