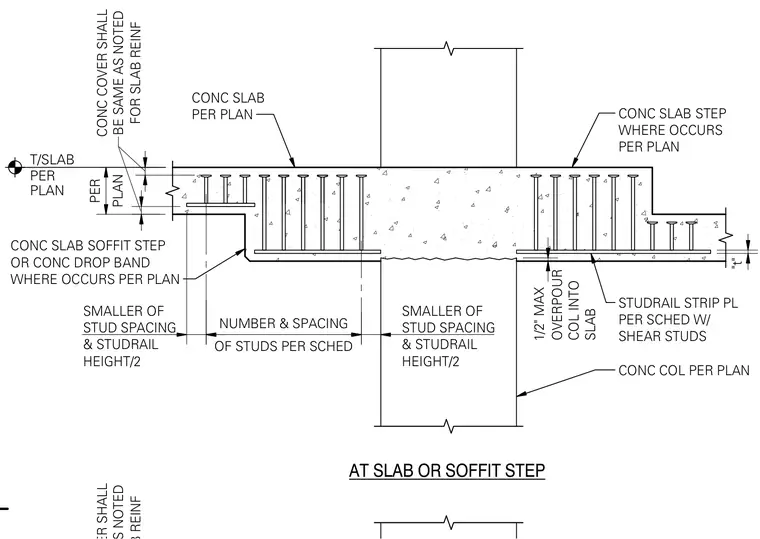

A concrete slab bears on a concrete column with embedded studrail strip plates and shear studs placed according to schedule. Concrete cover for slab reinforcement matches standard structural notes. At slab soffit steps and drop bands, stud spacing is limited to the smaller of the stud spacing or half the studrail height. A half-inch maximum overpour into the column is accommodated.
OVERPOUR COL INTO SLAB PLAN PER OF STUDS PER SCHED NUMBER & SPACING FOR SLAB REINF CONC COVER SHALL BE SAME AS NOTED T/SLAB PER PLAN 1/2" MAX STUDRAIL STRIP PL PER SCHED W/ SHEAR STUDS CONC COL PER PLAN CONC SLAB STEP WHERE OCCURS PER PLAN CONC SLAB PER PLAN CONC SLAB SOFFIT STEP OR CONC DROP BAND WHERE OCCURS PER PLAN AT SLAB OR SOFFIT STEP SMALLER OF STUD SPACING & STUDRAIL HEIGHT/2 SMALLER OF STUD SPACING & STUDRAIL HEIGHT/2 "t"
