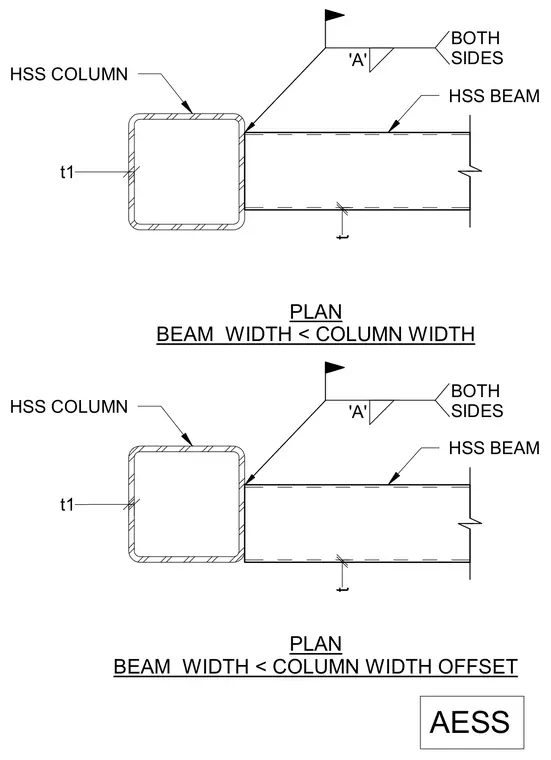

A hollow structural section beam frames into a hollow structural section column with a beam width smaller than the column width. The connection detail shows two conditions, one centered and one offset, with weld size 'A' specified on both sides. Wall thicknesses t and t1 are indicated for the beam and column.
HSS BEAM 'A' BOTH SIDES HSS COLUMN t PLAN BEAM WIDTH < COLUMN WIDTH t1 HSS COLUMN PLAN BEAM WIDTH < COLUMN WIDTH OFFSET t1 HSS BEAM 'A' BOTH SIDES t AESS
