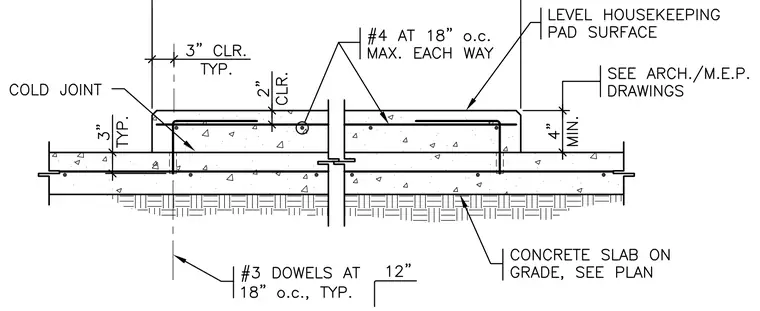

A reinforced concrete housekeeping pad sits atop a concrete slab on grade with a cold joint at the interface. The pad has a level surface with a four-inch minimum thickness and is reinforced with number four bars spaced at eighteen inches on center each way with two inches of clearance. The underlying slab on grade includes number three dowels spaced at eighteen inches on center typical with three inches of clearance.
