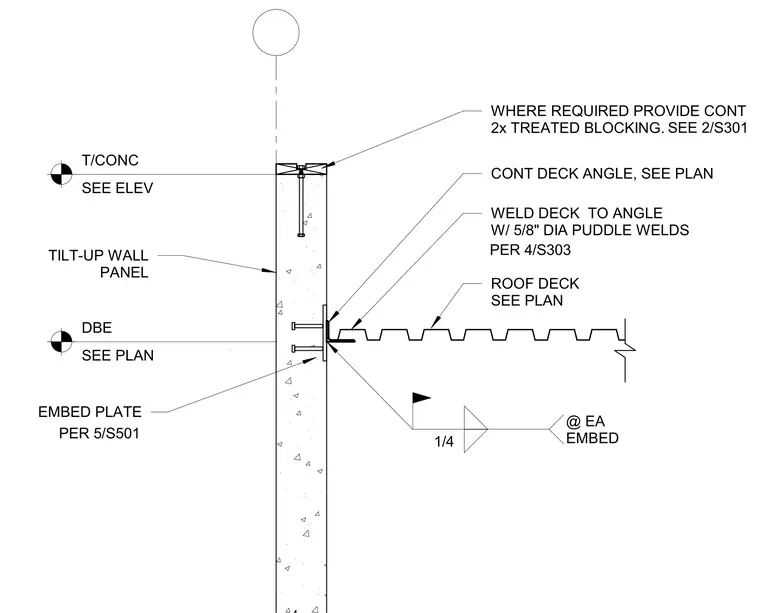

A continuous steel deck angle anchored to an embedded steel plate secures the roof deck to the tilt-up wall panel. Five-eighths-inch diameter puddle welds attach the metal deck to the angle at each embed location. Continuous two-by treated wood blocking sits at the top of the concrete parapet as specified. The embedded plate installation follows the structural drawings, and the deck angle is sized per plan.
Text on the drawing
TILT-UP WALL PANEL 1/4 @ EA EMBED T/CONC SEE ELEV DBE SEE PLAN EMBED PLATE ROOF DECK SEE PLAN WELD DECK TO ANGLE W/ 5/8" DIA PUDDLE WELDS CONT DECK ANGLE, SEE PLAN WHERE REQUIRED PROVIDE CONT 2x TREATED BLOCKING. PER 4/S303 SEE 2/S301 PER 5/S501 DETAIL BOOK REF. SHEET: S2.04 DATE: 02/20/2023
