Embed Plate Connection Schedule

Materials

Steel

Elements

Beams Walls Anchors / Embeds Connections / Plates

Connections

Bolted Connection Embed Plate Expansion / Slip Connection

About this detail

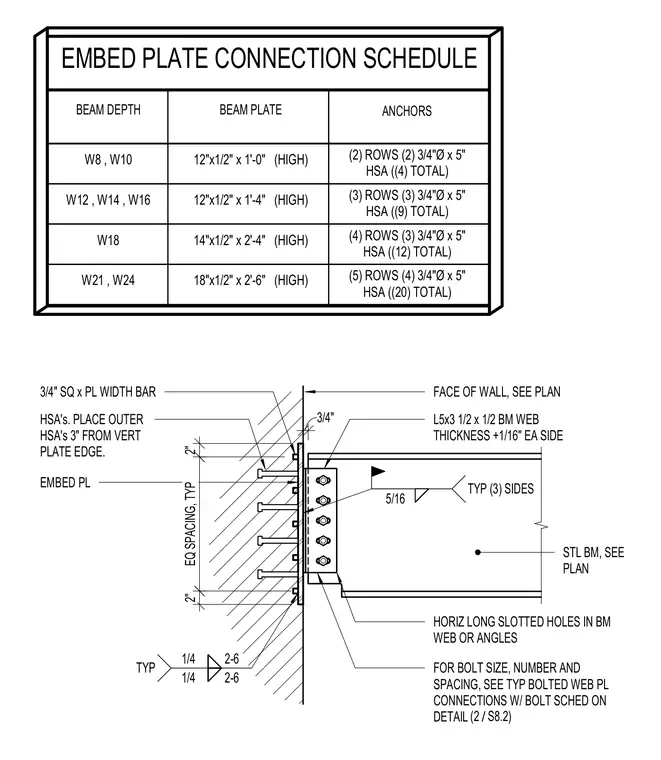

A steel beam connects to a concrete wall using an embed plate and headed stud anchors. The steel beam connects via an L5x3-1/2x1/2 angle welded to the web with a 5/16 fillet weld on three sides, and bolted to the embed plate using horizontal long slotted holes in the beam web or angles. The embed plate size and number of 3/4 inch diameter by 5 inch headed stud anchors vary based on beam depth, ranging from W8 and W10 beams using a 12x1/2x1'-0 inch plate with four anchors up to W21 and W24 beams using an 18x1/2x2'-6 inch plate with twenty anchors. Outer stud anchors are placed 3 inches from the vertical plate edge with equal spacing typical. Additional notes specify bolt size, number, and spacing per typical bolted web plate connections.
