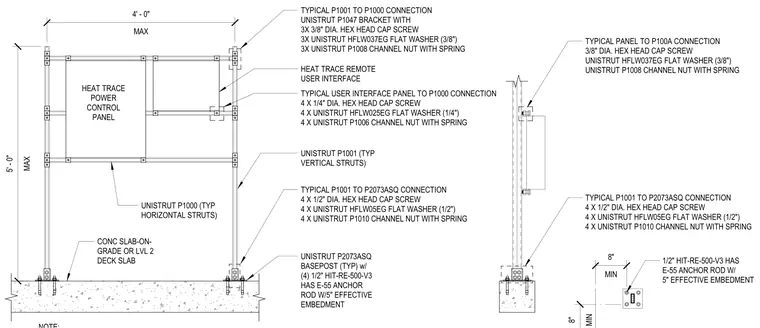

This assembly consists of a vertical support frame for a heat trace power control panel and remote user interface, utilizing Unistrut P1001 vertical struts and P1000 horizontal struts. The vertical struts are mounted to the concrete slab using Unistrut P2073ASQ base posts, each secured with four 1/2-inch diameter Hilti HIT-RE-500-V3 HAS E-55 anchor rods with 5 inches of effective embedment. The control panel and user interface are attached to the strut frame using P1047 brackets, various hex head cap screws, flat washers, and spring-loaded channel nuts. The assembly maintains a minimum 8-inch edge distance from the edge of the existing concrete foundation.
Text on the drawing
UNISTRUT P2073ASQ BASEPOST (TYP) w/ (4) 1/2" HIT-RE-500-V3 HAS E-55 ANCHOR ROD W/5" EFFECTIVE EMBEDMENT UNISTRUT P1001 (TYP VERTICAL STRUTS) TYPICAL USER INTERFACE PANEL TO P1000 CONNECTION 4 X 1/4" DIA. HEX HEAD CAP SCREW 4 X UNISTRUT HFLW025EG FLAT WASHER (1/4") 4 X UNISTRUT P1006 CHANNEL NUT WITH SPRING HEAT TRACE REMOTE USER INTERFACE TYPICAL P1001 TO P1000 CONNECTION UNISTRUT P1047 BRACKET WITH 3X 3/8" DIA. HEX HEAD CAP SCREW 3X UNISTRUT HFLW037EG FLAT WASHER (3/8") 3X UNISTRUT P1008 CHANNEL NUT WITH SPRING TYPICAL HEAT TRACE POWER CONTROL PANEL AND USER INTERFACE PANEL TYPICAL P1001 TO P2073ASQ CONNECTION 4 X 1/2" DIA. HEX HEAD CAP SCREW 4 X UNISTRUT HFLW05EG FLAT WASHER (1/2") 4 X UNISTRUT P1010 CHANNEL NUT WITH SPRING TYPICAL P1001 TO P2073ASQ CONNECTION 4 X 1/2" DIA. HEX HEAD CAP SCREW 4 X UNISTRUT HFLW05EG FLAT WASHER (1/2") 4 X UNISTRUT P1010 CHANNEL NUT WITH SPRING TYPICAL PANEL TO P100A CONNECTION 3/8" DIA. HEX HEAD CAP SCREW UNISTRUT HFLW037EG FLAT WASHER (3/8") UNISTRUT P1008 CHANNEL NUT WITH SPRING MIN 8" MIN 8" EDGE OF EXISTING CONCRETE FOUNDATION 1/2" HIT-RE-500-V3 HAS E-55 ANCHOR ROD W/ 5" EFFECTIVE EMBEDMENT ANCHORAGE DETAIL SECTION A-A ON TOP OF CONCRETE SLAB
