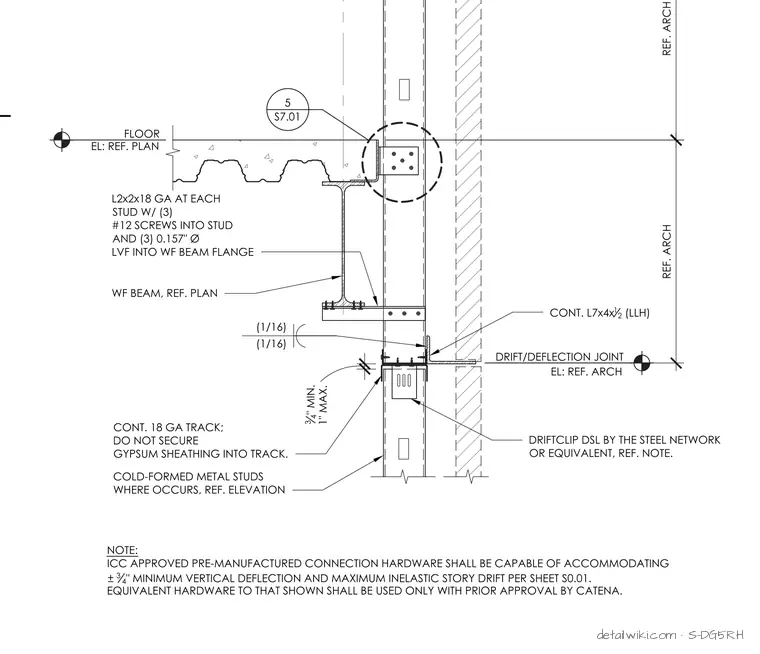

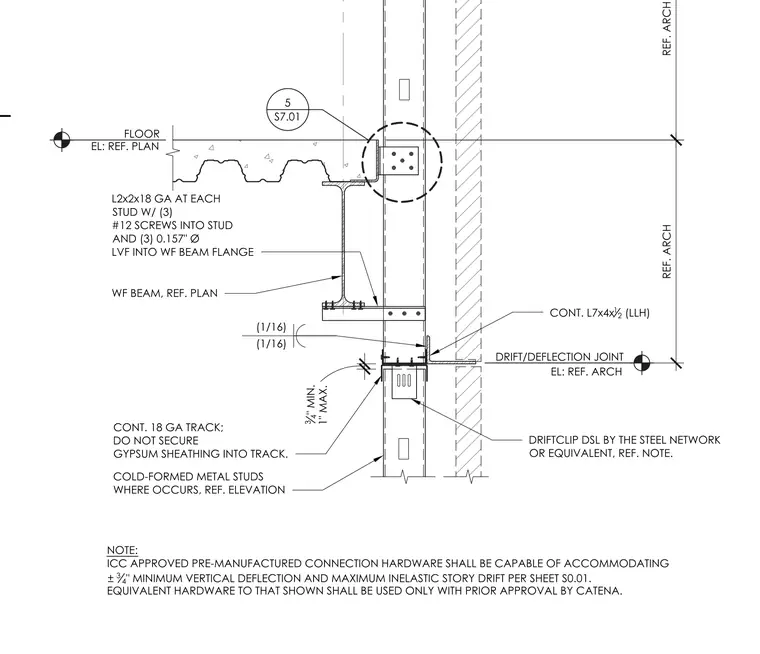

Cold-formed metal studs terminate below the structural floor slab with a drift and deflection joint allowing three-quarters of an inch minimum to one inch maximum movement. A continuous 18-gauge track receives the studs while gypsum sheathing remains unsecured into the track. A DriftClip DSL by The Steel Network or equivalent pre-manufactured connection hardware accommodates vertical deflection and inelastic story drift. A continuous L7x4x1/2 angle supports the assembly, secured with an L2x2x18-gauge clip at each stud using three number twelve screws into the stud and three 0.157-inch diameter fasteners into the wide-flange beam flange.
3 4 " MIN. 1" MAX. DRIFT/DEFLECTION JOINT EL: REF. ARCH 5 S7.01 WF BEAM, REF. PLAN CONT. 18 GA TRACK; DO NOT SECURE GYPSUM SHEATHING INTO TRACK. DRIFTCLIP DSL BY THE STEEL NETWORK OR EQUIVALENT, REF. NOTE. CONT. L7x4x 1 2 (LLH) NOTE: ICC APPROVED PRE-MANUFACTURED CONNECTION HARDWARE SHALL BE CAPABLE OF ACCOMMODATING ± 3 4 " MINIMUM VERTICAL DEFLECTION AND MAXIMUM INELASTIC STORY DRIFT PER SHEET S0.01. EQUIVALENT HARDWARE TO THAT SHOWN SHALL BE USED ONLY WITH PRIOR APPROVAL BY CATENA. (1/16) (1/16) REF. ARCH REF. ARCH COLD-FORMED METAL STUDS WHERE OCCURS, REF. ELEVATION L2x2x18 GA AT EACH STUD W/ (3) #12 SCREWS INTO STUD AND (3) 0.157" Ø LVF INTO WF BEAM FLANGE FLOOR EL: REF. PLAN
