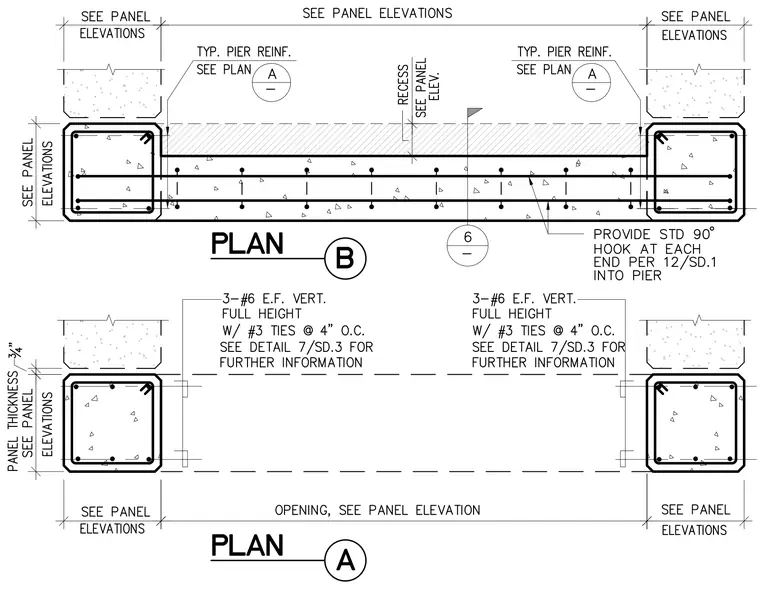

Two plan views show precast concrete wall panels framing into structural piers with specified reinforcement. Plan B details a wall segment with standard 90-degree hooks at each end extending into the piers, alongside typical pier reinforcement sized per plan and panel dimensions shown per panel elevations. Plan A presents an opening between piers with vertical reinforcement consisting of three number six bars each face full height, with number three ties at four inches on center.
