Structural · S-DG3FZ

Typical Hss To Hss Connection

Materials

Steel

Elements

Connections / Plates

Connections

HSS Connection Welded Connection

About this detail

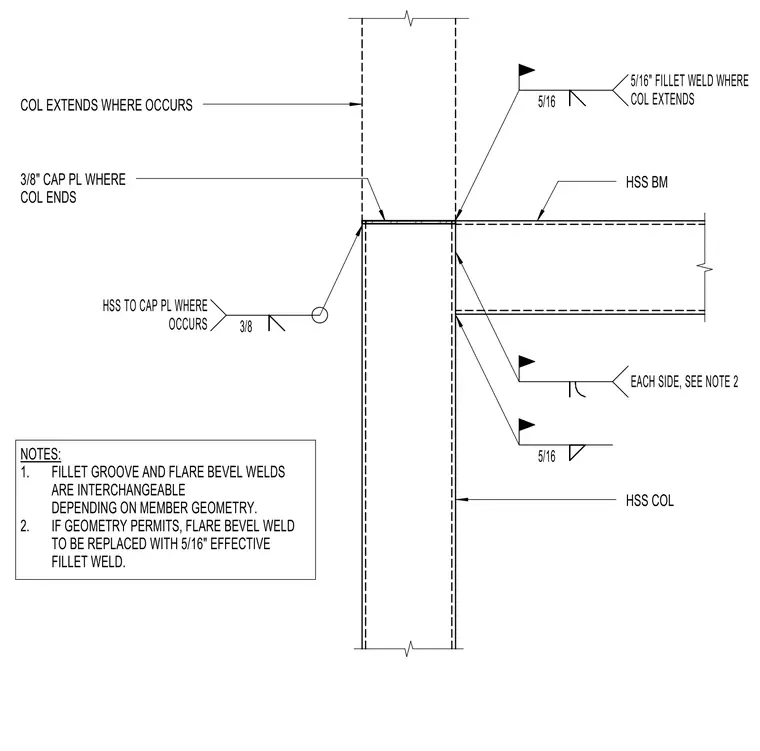

A hollow structural section beam frames into a hollow structural section column with a three-eighths-inch cap plate provided where the column terminates. Where the column extends past the connection, a five-sixteenths-inch fillet weld secures the assembly. Where the column ends, a three-eighths-inch weld secures the hollow structural section to the cap plate. The connection incorporates field welding specified as five-sixteenths-inch on each side, with notes allowing flare bevel welds and fillet groove welds to be interchangeable depending on member geometry. If geometry permits, the flare bevel weld may be replaced with a five-sixteenths-inch effective fillet weld.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
