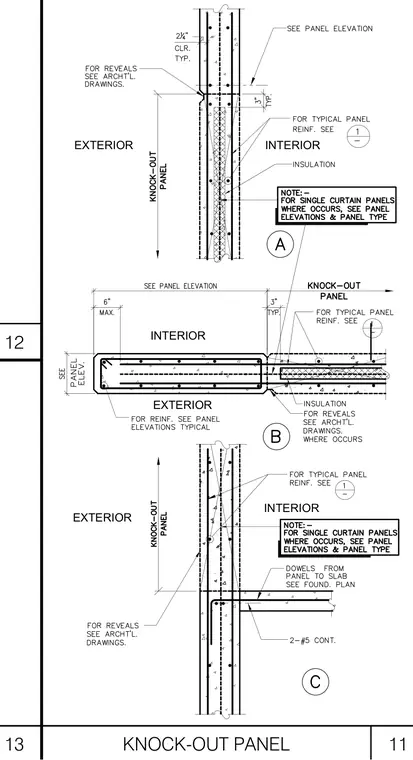

Precast concrete wall assemblies feature knock-out panels with interior insulation and typical reinforcement. Sections show horizontal and vertical panel conditions, including reveal configurations referenced to architectural drawings and typical panel reinforcing details. A foundation connection detail incorporates dowels extending from the precast panel into the floor slab with continuous reinforcing bars.
