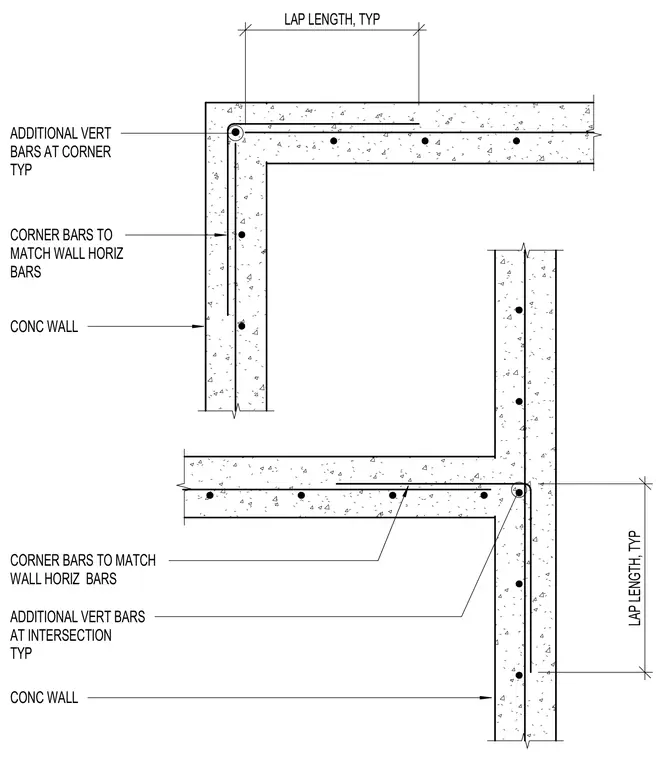

Concrete walls feature horizontal reinforcing bars matched by bent corner bars and T-intersection bars extending typical lap lengths into intersecting walls. Additional vertical reinforcing bars are placed at both outside corners and wall intersections. All lap lengths and bar sizes are typical.
ADDITIONAL VERT BARS AT CORNER TYP CORNER BARS TO MATCH WALL HORIZ BARS CONC WALL CORNER BARS TO MATCH WALL HORIZ BARS CONC WALL ADDITIONAL VERT BARS AT INTERSECTION TYP LAP LENGTH, TYP LAP LENGTH, TYP
