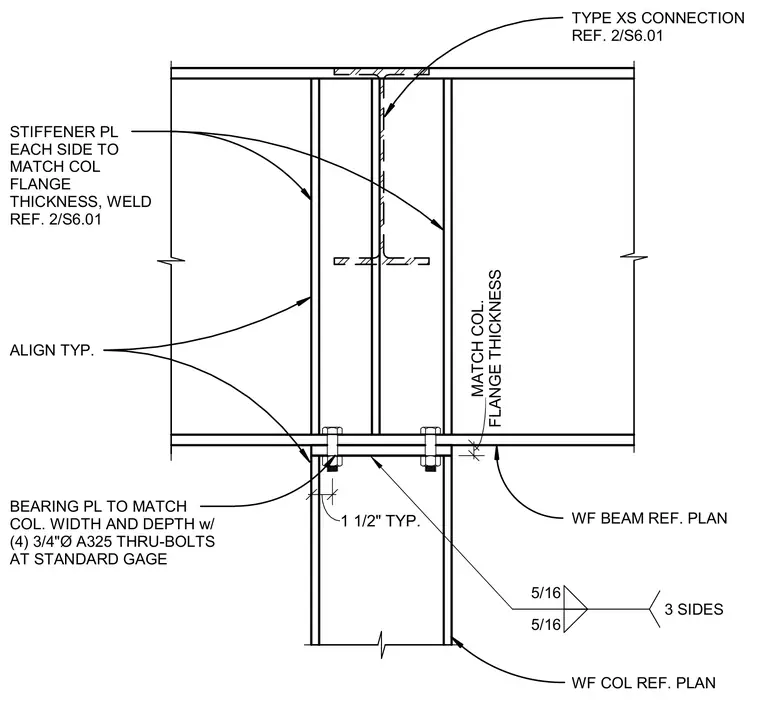

A wide flange beam frames continuously over a supporting wide flange column with a type XS connection referenced elsewhere. Stiffener plates matching the column flange thickness are welded to each side of the column web. A bearing plate matching the column width and depth sits between the members and secures with four 3/4-inch diameter A325 thru-bolts at standard gauge. Fillet welds of five-sixteenths inch size on three sides attach the assembly.
WF COL REF. PLAN 1 1/2" TYP. WF BEAM REF. PLAN TYPE XS CONNECTION REF. 2/S6.01 STIFFENER PL EACH SIDE TO MATCH COL FLANGE THICKNESS, WELD REF. 2/S6.01 BEARING PL TO MATCH COL. WIDTH AND DEPTH w/ (4) 3/4"Ø A325 THRU-BOLTS AT STANDARD GAGE ALIGN TYP. 5/16 5/16 3 SIDES FLANGE THICKNESS MATCH COL.
