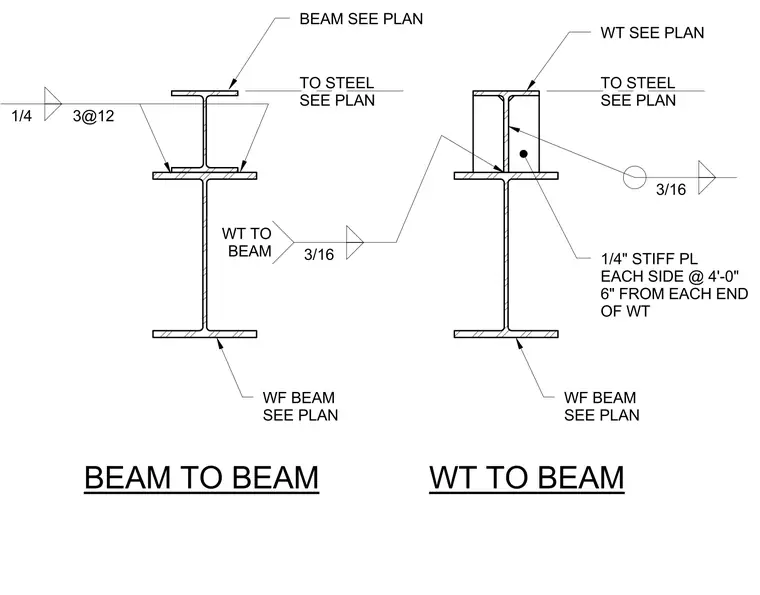

Structural steel beam-to-beam framing connections utilize wide-flange beams and WT shapes sized per plan. The assembly features quarter-inch and three-sixteenths inch fillet welds connecting the WT profiles to the supporting wide-flange beams. One-quarter-inch stiffener plates are welded to each side of the WT shape spaced at four feet on center, starting six inches from each end. All structural steel sizes and connection specifications are designated to be sized per plan.
BEAM TO BEAM WT TO BEAM WF BEAM SEE PLAN WF BEAM SEE PLAN BEAM SEE PLAN TO STEEL SEE PLAN 1/4" STIFF PL EACH SIDE @ 4'-0" 6" FROM EACH END OF WT TO STEEL SEE PLAN WT SEE PLAN 3/16 3/16 WT TO BEAM 1/4 3@12
