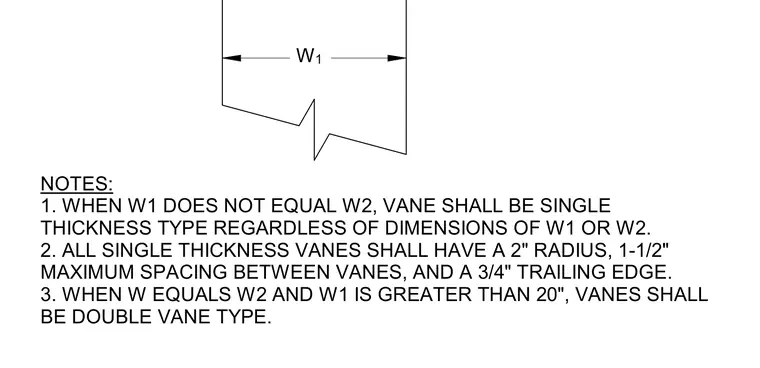

90 Degree Mitered Elbow Turning Vane Detail

Materials

Elements

About this detail

Turning vanes for mitered duct elbows are specified based on duct dimensions W1 and W2. Single thickness vanes require a two inch radius, a maximum spacing of one and a half inches between vanes, and a three quarter inch trailing edge. Single thickness vanes are used whenever W1 does not equal W2 regardless of dimensions, while double vane types are required when W equals W2 and W1 exceeds twenty inches.
