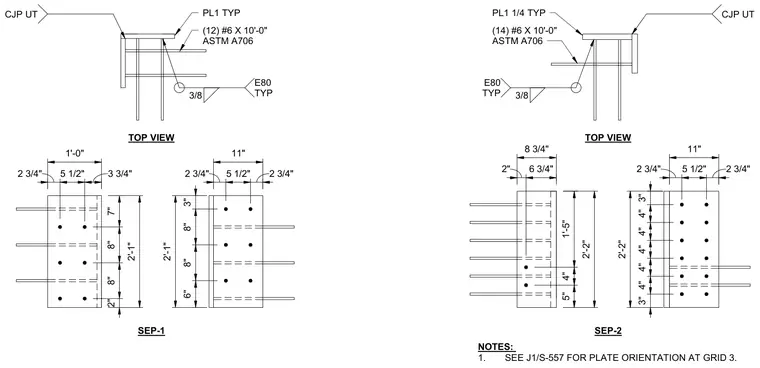

Embedded plate connection assemblies SEP-1 and SEP-2 detail steel plates welded with complete joint penetration welds subjected to ultrasonic testing and anchored by deformed reinforcing bars. Assembly SEP-1 utilizes twelve number six reinforcing bars measuring ten feet long of ASTM A706 steel tied to typical plates with three-eighths inch fillets using E80 electrodes. Assembly SEP-2 incorporates fourteen number six reinforcing bars measuring ten feet long of ASTM A706 steel. Plate orientation is referenced to sheet J1/S-557 at grid 3.
3/8 E80 TYP SEP-2 CJP UT TOP VIEW 6" 8" 8" 3" 2" 8" 8" 7" 2'-1" 1'-0" 2 3/4" 5 1/2" 3 3/4" 2'-1" 11" 2 3/4" 5 1/2" 2 3/4" TOP VIEW 3/8 E80 TYP PL1 TYP (12) #6 X 10'-0" ASTM A706 CJP UT SEP-1 PL1 1/4 TYP (14) #6 X 10'-0" ASTM A706 2 3/4" 5 1/2" 2 3/4" 3" 4" 4" 4" 4" 4" 3" 2'-2" 11" 5" 4" 1'-5" 8 3/4" 2" 6 3/4" 2'-2" NOTES: 1. SEE J1/S-557 FOR PLATE ORIENTATION AT GRID 3. J1/S-557
