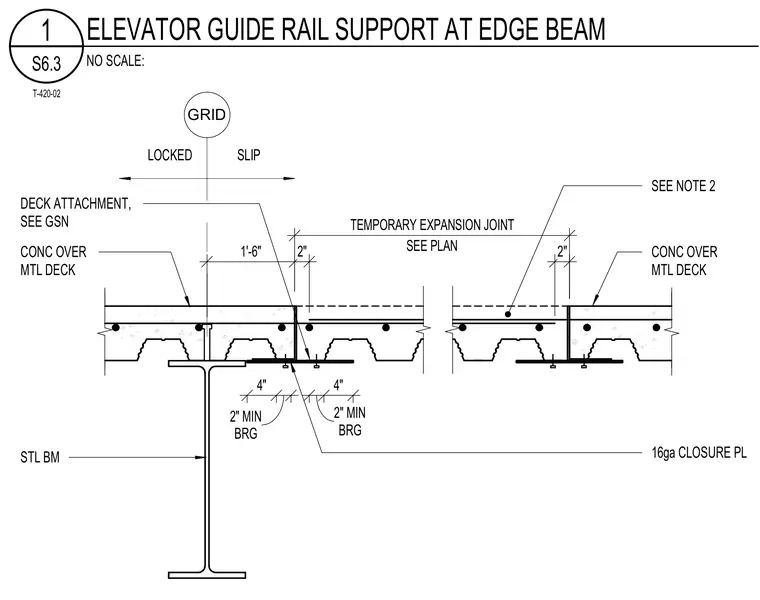

An elevator guide rail support detail at an edge beam features a structural steel beam supporting concrete over metal deck with a 16-gauge closure plate. A temporary expansion joint is provided with a two-inch minimum bearing on each side, sized per plan. Deck attachments are installed according to general structural notes. The grid location includes locked and slip provisions.
1'-6" 2" SEE PLAN TEMPORARY EXPANSION JOINT 2" 4" BRG 2" MIN BRG 2" MIN 4" STL BM GRID CONC OVER MTL DECK CONC OVER MTL DECK 16ga CLOSURE PL DECK ATTACHMENT, SEE GSN SEE NOTE 2 SLIP LOCKED NO SCALE: S6.3 1 ELEVATOR GUIDE RAIL SUPPORT AT EDGE BEAM T-420-02
