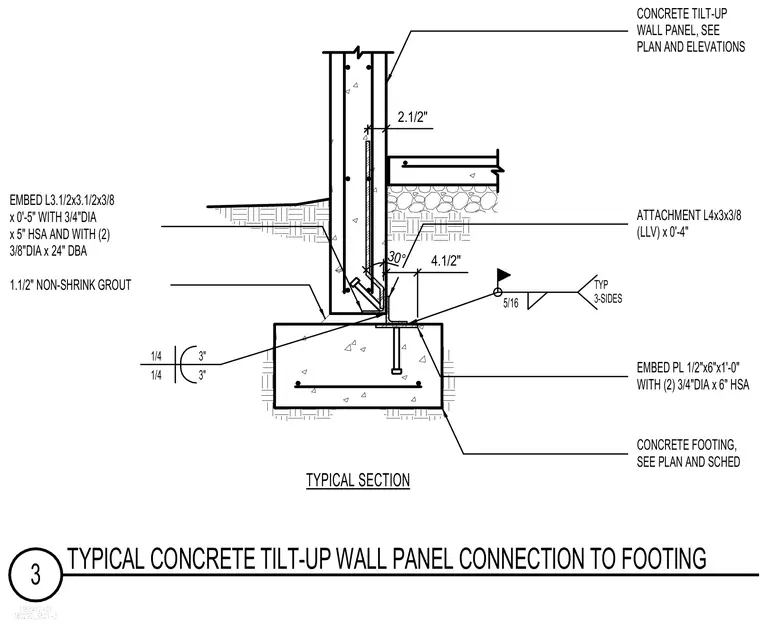

A concrete tilt-up wall panel is anchored to a concrete footing using an embedded steel plate measuring half-inch by six inches by one foot zero inches with two three-quarter-inch diameter by six-inch headed stud anchors. An angle measuring three and one-half inches by three and one-half inches by three-eighths of an inch by zero feet five inches connects to three-quarter-inch diameter by five-inch headed stud anchors and two three-eighths-inch diameter by twenty-four-inch dowel bars. An attachment angle measuring four inches by three inches by three-eighths of an inch by zero feet four inches is welded with five-sixteenth-inch fillet welds on three sides. A one-and-one-half-inch layer of non-shrink grout is provided beneath the wall panel.
1065472-01 180290_S501-3 3 TYPICAL CONCRETE TILT-UP WALL PANEL CONNECTION TO FOOTING TYPICAL SECTION 5/16 TYP CONCRETE FOOTING, SEE PLAN AND SCHED CONCRETE TILT-UP WALL PANEL, SEE PLAN AND ELEVATIONS EMBED PL 1/2"x6"x1'-0" WITH (2) 3/4"DIA x 6" HSA EMBED L3.1/2x3.1/2x3/8 x 0'-5" WITH 3/4"DIA x 5" HSA AND WITH (2) 3/8"DIA x 24" DBA 1.1/2" NON-SHRINK GROUT ATTACHMENT L4x3x3/8 (LLV) x 0'-4" 3-SIDES 3" 3" 1/4 1/4 4.1/2" 2.1/2" 30°
