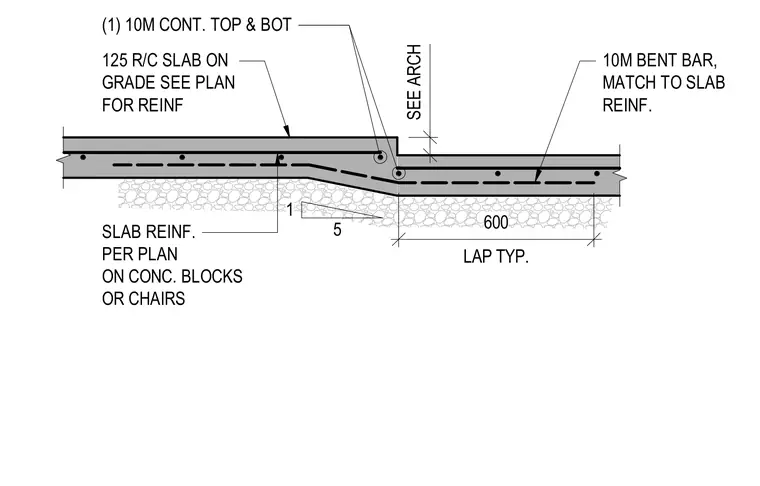

A one hundred twenty-five millimeter reinforced concrete slab on grade transitions in elevation with a stepped profile. The main slab reinforcement is placed per plan on concrete blocks or chairs. Three continuous ten-millimeter top and bottom slab reinforcing bars run through the step transition zone. A ten-millimeter bent bar matches the slab reinforcement with a typical six-hundred-millimeter lap splice.
125 R/C SLAB ON GRADE SEE PLAN FOR REINF SEE ARCH LAP TYP. 600 1 5 (1) 10M CONT. TOP & BOT SLAB REINF. PER PLAN ON CONC. BLOCKS OR CHAIRS 10M BENT BAR, MATCH TO SLAB REINF.
