A 250PFC skewed steel beam connects to a structural column web using a ten-millimeter-thick by one-hundred-forty-millimeter-deep cleat plate. The cleat plate is welded to the column web with a six-millimeter fillet weld on all round and secured to the beam web with two M20 bolts. Additional steel framing connects to the opposite side of the column per structural plans.

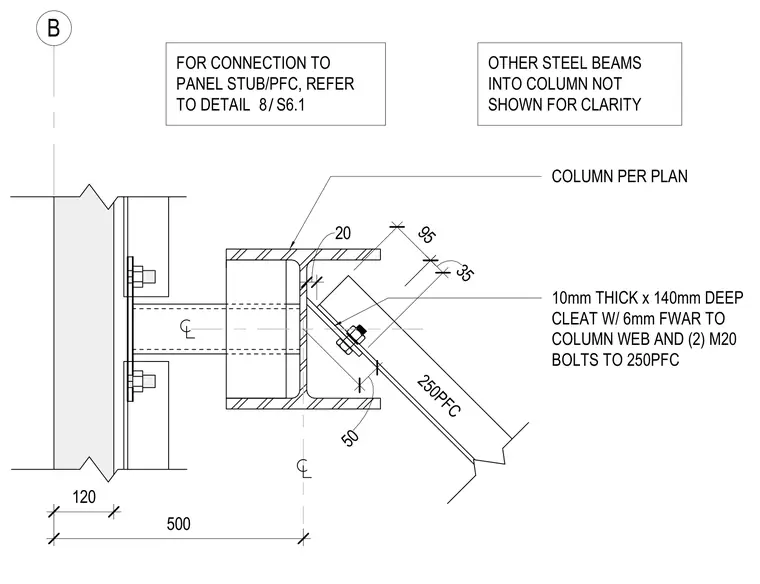

500 B OTHER STEEL BEAMS INTO COLUMN NOT SHOWN FOR CLARITY 35 95 20 50 250PFC 10mm THICK x 140mm DEEP CLEAT W/ 6mm FWAR TO COLUMN WEB AND (2) M20 BOLTS TO 250PFC FOR CONNECTION TO PANEL STUB/PFC, REFER TO DETAIL COLUMN PER PLAN / 8 S6.1 120
