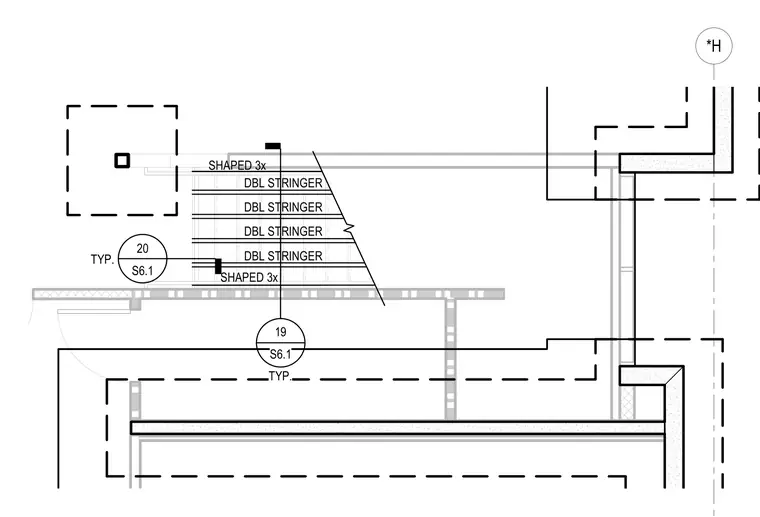

Double stringer stair framing utilizes shaped members spaced across structural stair runs. Typical connection details coordinate stair stringer layout with adjacent framing and structural supports.
*H S6.1 19 TYP. S6.1 20 TYP. SHAPED 3x SHAPED 3x DBL STRINGER DBL STRINGER DBL STRINGER DBL STRINGER
