Text on the drawing

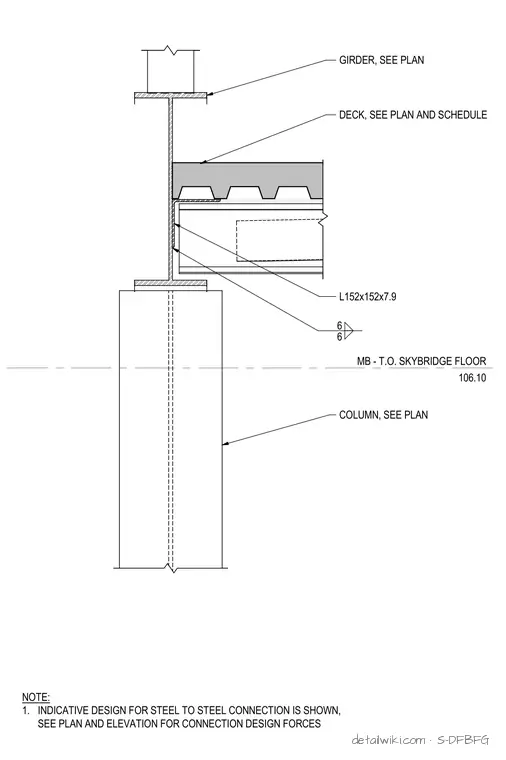

COLUMN, SEE PLAN L152x152x7.9 6 6 GIRDER, SEE PLAN NOTE: 1. INDICATIVE DESIGN FOR STEEL TO STEEL CONNECTION IS SHOWN, SEE PLAN AND ELEVATION FOR CONNECTION DESIGN FORCES MB - T.O. SKYBRIDGE FLOOR 106.10 DECK, SEE PLAN AND SCHEDULE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
