Structural · S-DF9CD

Concrete Foundation Wall and Footing Reinforcement Details

Materials

Concrete Reinforced Concrete Masonry / CMU

Elements

Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

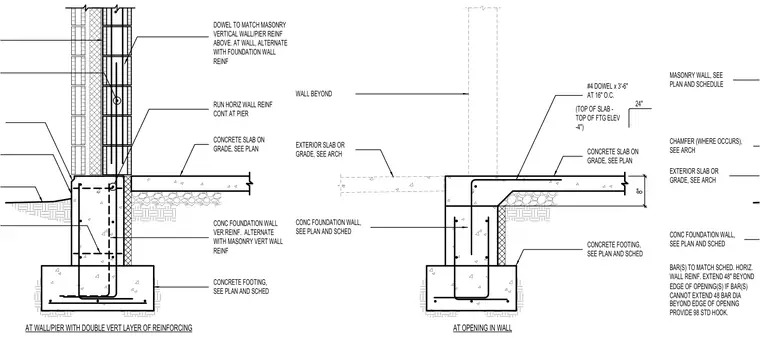

Concrete foundation walls and footings support masonry walls and concrete slabs on grade. The assembly incorporates vertical and horizontal reinforcing bars detailed to match schedule specifications, including dowel connections and specific lap lengths. Horizontal wall reinforcement extends past wall openings or terminates in standard hooks when space is limited. Footings feature continuous bottom reinforcement beneath foundation walls and thickened slab edges where required.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
