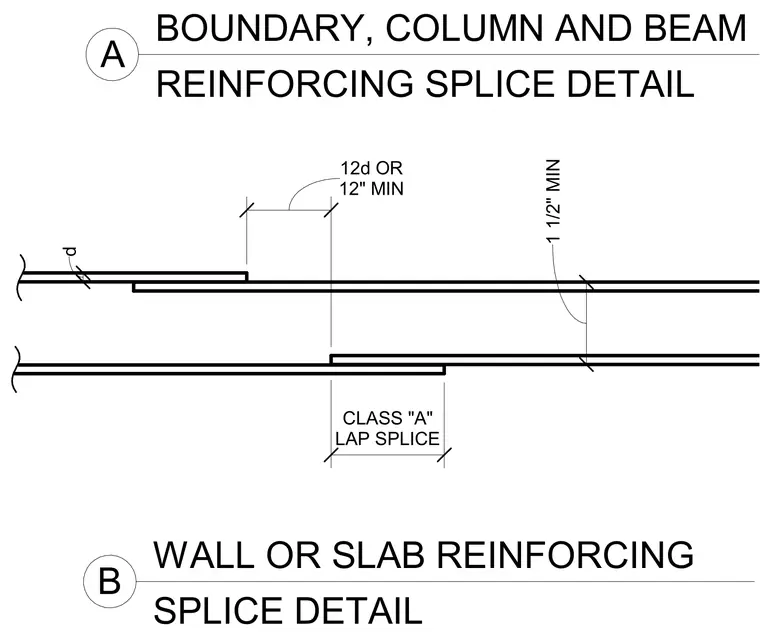

Two parallel reinforcing bars overlap to form a class A lap splice with a minimum length of twelve bar diameters or twelve inches, maintaining a one and one-half inch minimum clearance.
BOUNDARY, COLUMN AND BEAM REINFORCING SPLICE DETAIL SPLICE DETAIL WALL OR SLAB REINFORCING B A 12" MIN 12d OR d 1 1/2" MIN CLASS "A" LAP SPLICE
