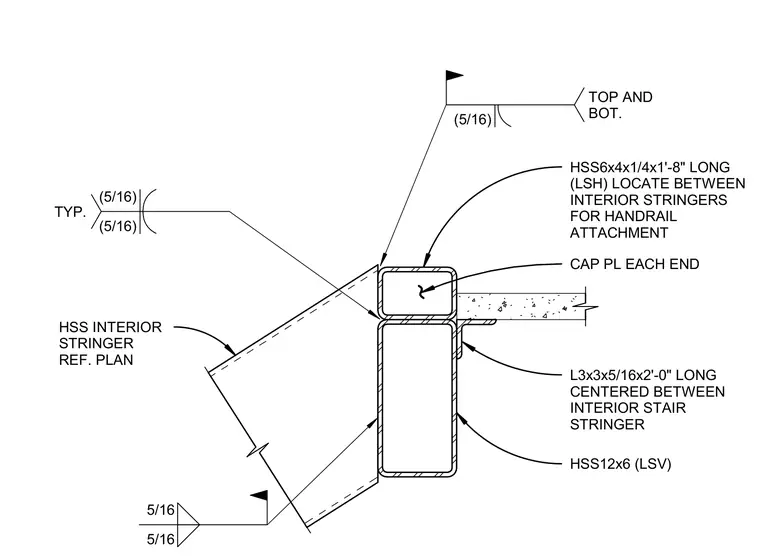

An HSS12x6 structural steel landing beam connects to an inclined interior stair stringer using an HSS6x4x1/4 member located between the interior stringers for handrail attachment with cap plates at each end. A 3-inch by 3-inch by 5/16-inch angle, 2 feet long, is centered between the interior stair stringer. Five-sixteenth-inch fillet welds secure the connection assembly.
L3x3x5/16x2'-0" LONG CENTERED BETWEEN INTERIOR STAIR STRINGER HSS INTERIOR STRINGER REF. PLAN CAP PL EACH END HSS6x4x1/4x1'-8" LONG (LSH) LOCATE BETWEEN INTERIOR STRINGERS FOR HANDRAIL ATTACHMENT HSS12x6 (LSV) (5/16) TOP AND BOT. (5/16) (5/16) TYP. 5/16 5/16
