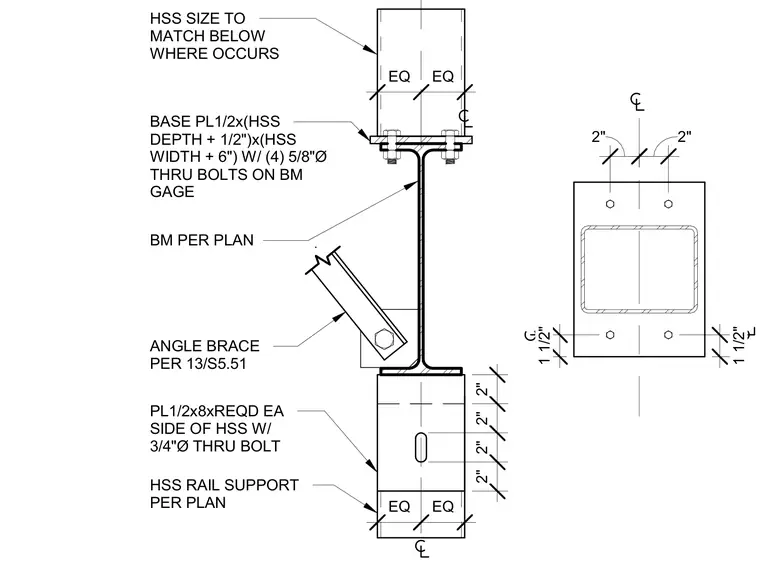

An upper hollow structural section rail support connects to a structural steel beam via a one-half-inch base plate secured with four five-eighths-inch through bolts on the beam gauge. An angle brace frames into the beam web as specified on sheet thirteen. A lower hollow structural section rail support attaches to the underside of the beam using one-half-inch plates on each side with three-fourths-inch through bolts.
1 1/2" 1 1/2" HSS RAIL SUPPORT PER PLAN PL1/2x8xREQD EA SIDE OF HSS W/ 3/4"Ø THRU BOLT BM PER PLAN ANGLE BRACE PER 13/S5.51 BASE PL1/2x(HSS DEPTH + 1/2")x(HSS WIDTH + 6") W/ (4) 5/8"Ø THRU BOLTS ON BM GAGE HSS SIZE TO MATCH BELOW WHERE OCCURS 2" 2" 2" 2" EQ EQ EQ EQ 2" 2"
