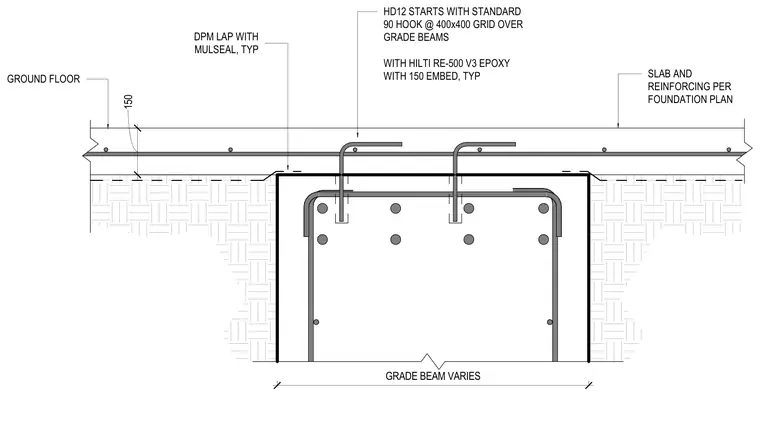

The ground slab bears on a variable-width concrete grade beam with a damp-proof membrane lapped with Mulseal at the interface. Dowel reinforcing bars featuring standard ninety-degree hooks are anchored into the grade beam on a four hundred by four hundred millimeter grid using Hilti RE-500 V3 epoxy with a one hundred fifty millimeter embedment depth. Slab thickness is one hundred fifty millimeters, with slab and reinforcing detailed per the foundation plan.
GRADE BEAM VARIES 150 SLAB AND REINFORCING PER FOUNDATION PLAN HD12 STARTS WITH STANDARD 90 HOOK @ 400x400 GRID OVER GRADE BEAMS WITH HILTI RE-500 V3 EPOXY WITH 150 EMBED, TYP GROUND FLOOR DPM LAP WITH MULSEAL, TYP
