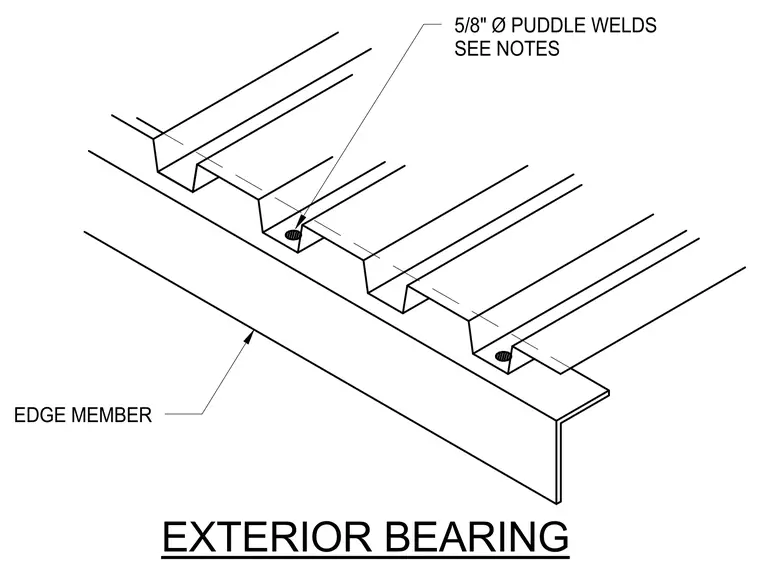

The metal deck bears directly across the top flange of a structural edge member. Five-eighths inch diameter puddle welds secure each flute of the metal deck to the supporting steel member per structural notes.
