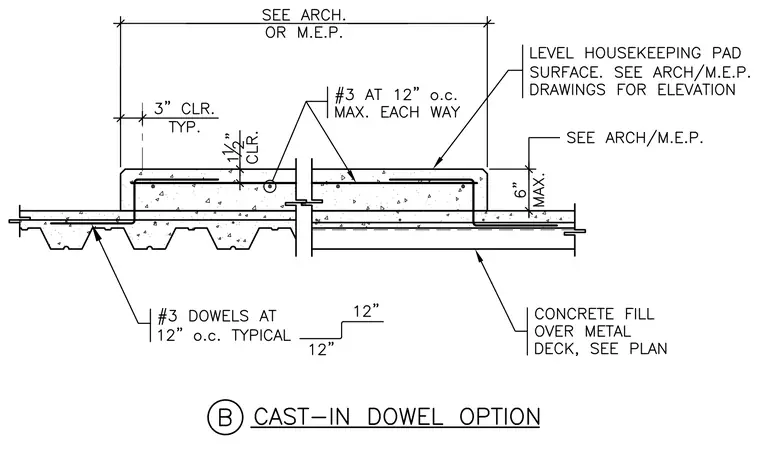

A concrete housekeeping pad sits atop a concrete fill over metal deck assembly, reinforced with number 3 bars spaced at twelve inches on center each way. Number 3 dowels are placed at twelve inches on center typical into the metal deck fill. The housekeeping pad features a six-inch maximum height and requires three inches of clear cover typical, with one and a half inches of clear cover at the top surface. The pad surface is leveled with elevation references coordinated through architectural and mechanical, electrical, and plumbing drawings.
